Mixers for elevated tanks Type HEM-6

During the mixing process, the agitation jet can be directed in the desired flow direction thanks to a mixing nozzle that can rotate 360°.

Advantages

  • Agitation steerable 360°
  • Ball bearing in oil bath
  • Bundled agitation jet

Additional advantages

  • For the prevention of floating and sinking layers
  • Many versions available
  • Made in Germany

Business areas

  • Agricultural sector
  • Biogas sector
  • Industrial use

Suitable for

  • Gravity tank

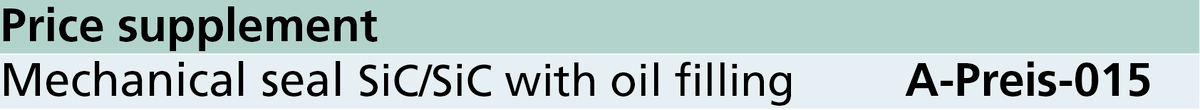

This makes it possible effectively counteract any floating or sinking layers that may arise. The special characteristic of the HEM-6 mixer is that it does not require an external foundation and the rotation is adjusted via the mixer tube. All axial forces are absorbed by the four stands into which the mixer is guided. The standard version requires a flat installation space. Suitable connecting flanges for all slurry tank types can be supplied at short notice on request. The mixer nozzle ring is divided. As a result, the mixer can be easily taken into the tank for assembly though a manhole with an internal diameter of 800 mm. Permanent formwork can be supplied for installation in a concrete tank.When only used occasionally, the standard version with shaft seal rings is sufficient. For prolonged operational periods, we recommend fitting the mixer with a mechanical seal and modular shafts for a price supplement (A-Preis-015) (retrofitting not possible).

Adjustment range: 0 - 360°

Adjustable installation height: 500 - 1.300 mm

Mixer nozzle: Ø 600 mm auf 45°

Maximum mixing propeller: Ø 560 pusher

PTO connection: 1 3/8” Z6 DIN 9611

Container height: Max. 6 meters, then the version with compensator is mandatory

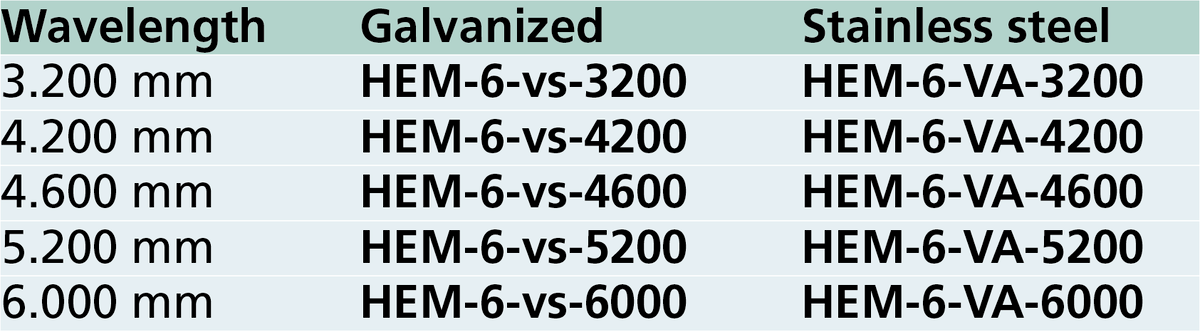

Technical data - Type HEM 6 installed mixer

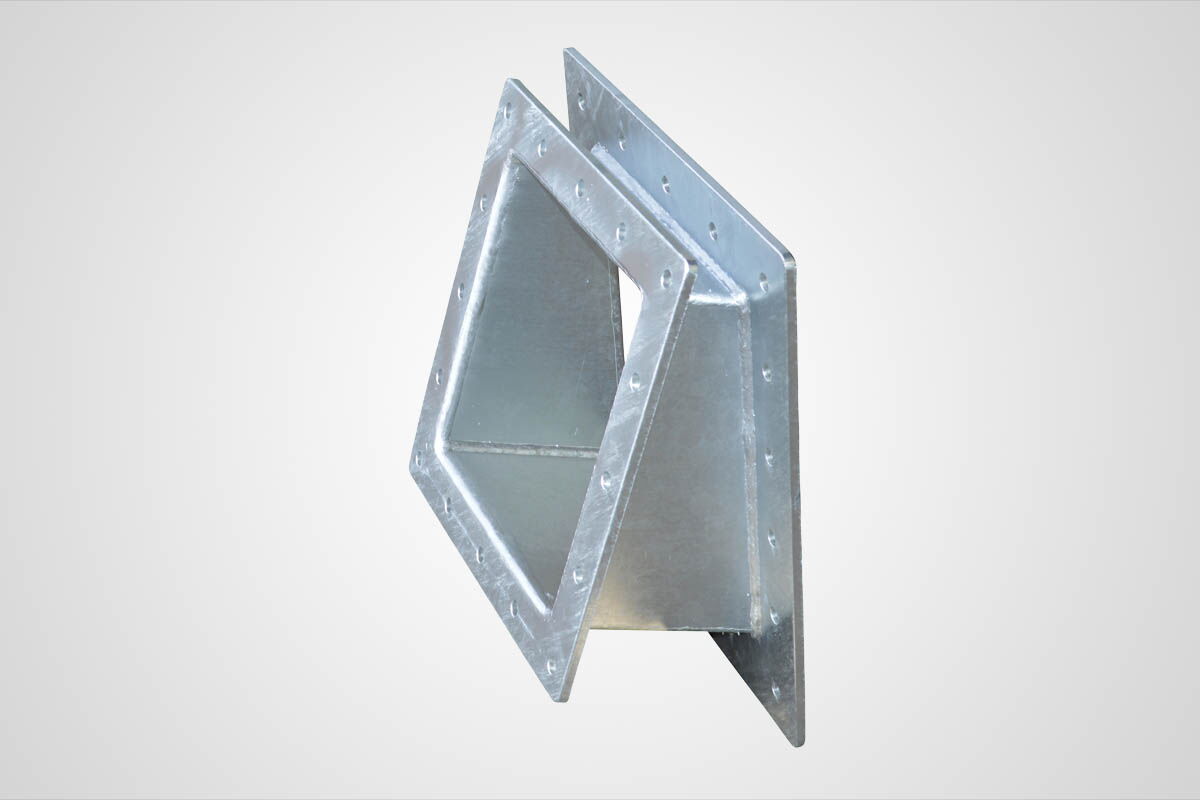

Angle bracket

HEM6 Angle bracket
HEM6 Angle bracket

A 10° or 20° angle bracket for installing the mixer can be supplied for mixing a tank that is built into the ground even when the fill level is low. An oil expansion tank is also required due to the floor angle.

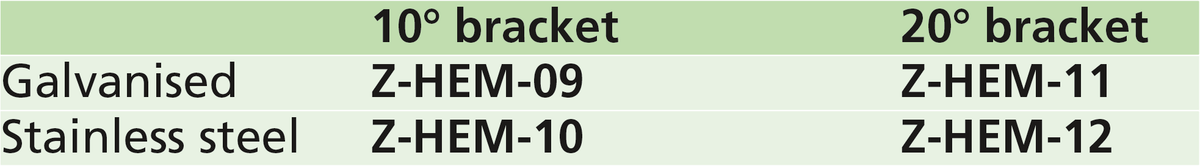

Technical data - Angle bracket

Concrete formwork

HEM 6 Assembly jig
HEM 6 Assembly jig

The permanent concrete formwork simplifies the final assembly. The shaft lining contains all the threaded sleeves that make it easier to attach the HEM-6 wall plate. Due to the different hole dimensions, it must be specified when ordering whether the HEM-6 agitator is to be ordered with a standard wall bracket or in the compensator version. As an alternative to the simple concrete formwork, a version with a masonry collar of 150 mm is available (article Z-HEM-013 + Z-HEM-014). All concrete formwork cannot be retrofitted.

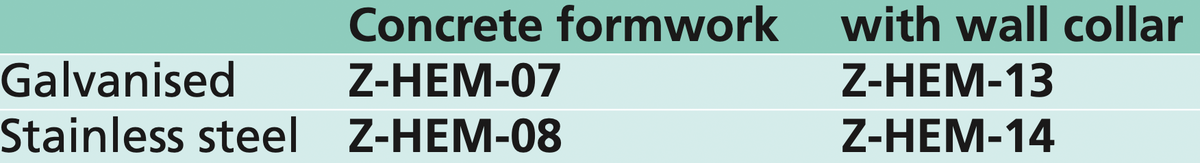

Technical data - Concrete formwork

Price supplement: compensator version

Price supplement: compensator version
Price supplement: compensator version

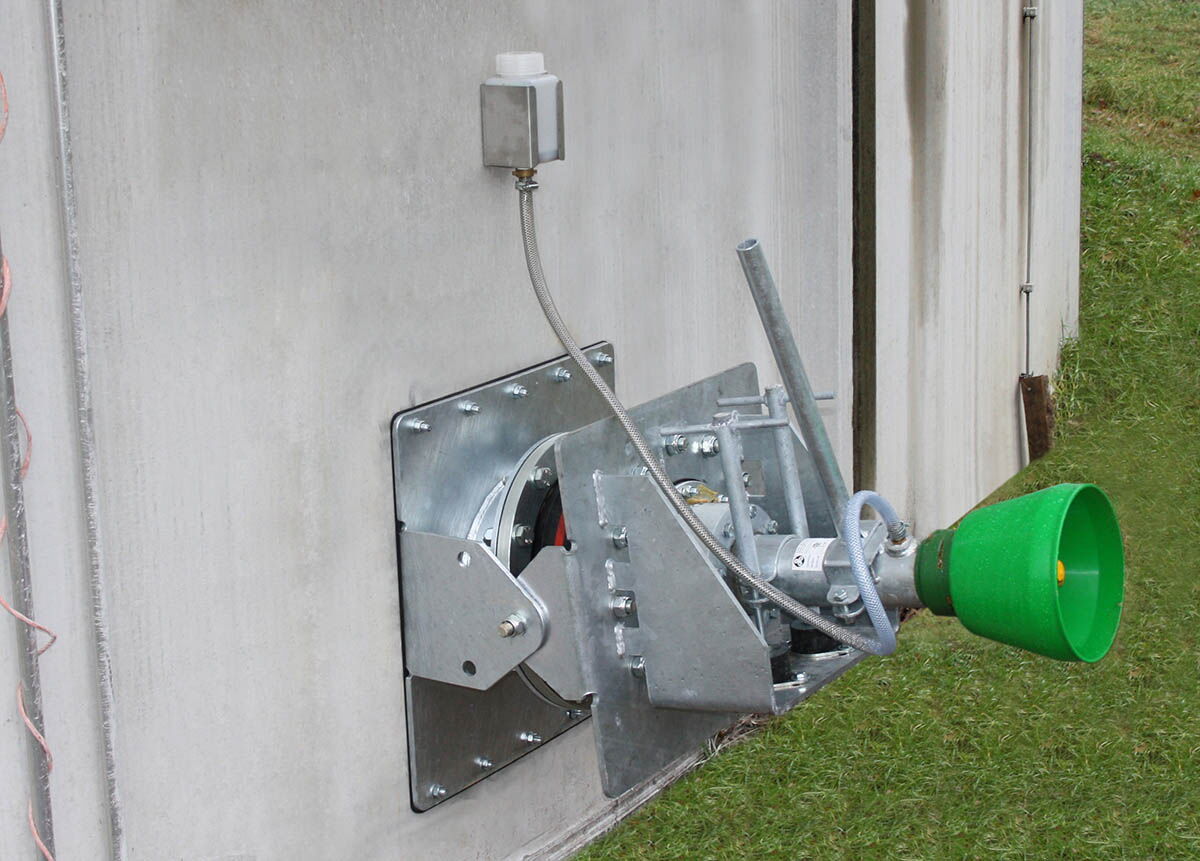

For tank heights greater than 6 metres, a compensator is required instead of the normal mounting bracket. The compensator can be submerged up to 20 metres (up to 100 metres as a special version). Thanks to an angle adjustment device in the wall bracket, the installation can be adjusted easily at a constant floor angle of 0° to 20°. This also facilitates installation. This version is available for a price supplement on the basic unit.

We recommend fitting the HEM-6 mixer in the version with the mechanical seal and modular shaft technology for a price supplement.

An oil expansion tank for wall mounting is required for mixers that are installed at floor angle.

Technical data - compensator version

Price supplement: reinforced mixer nozzle

A 45° reinforced mixer nozzle made of 8 mm sheet steel is available for a price supplement on the HEM-6 standard mixer. This is especially recommended if there is a high level of sand in the slurry. On request, the reinforced nozzle is also available with a 60° nozzle angle. This can be advantageous if, for example, the mixer is to be installed at a 20° floor angle in an elevated tank. We recommend also fitting the HEM-6 mixer with a mechanical seal and modular shafts for a price supplement (A-Preis-015). An oil expansion tank for wall mounting is required for mixers that are installed at floor angle.

Technical data - reinforced mixer nozzle

Flexible and customised.

Various equipment variants, attachments and accessories are available for our agitators and systems.

Oil expansion tank

Oil expansion tank

Details: Mixers for elevated tanks Type HEM-6
Mixing propellers

Mixing propellers

Details: Mixers for elevated tanks Type HEM-6
Hanging clamp

Hanging clamp

Details: Mixers for elevated tanks Type HEM-6
Constant velocity drive shaft

Constant velocity
drive shaft

Details: Mixers for elevated tanks Type HEM-6
External drive unit

External
drive unit

Details: Mixers for elevated tanks Type HEM-6

Specifications are subject to change without notice.
