Pivoting three point attachment

Pivoting three point attachment The slurry mixers are to be used with a pivoting three point attachment. Its length shall correspond with that of the mixer. The use of a pivoting three point attachment is only possible with slurry mixers that have an external tube diameter of 102 mm. The pivoting attachment allows the mixer to be used easily even with the smallest of pit openings.

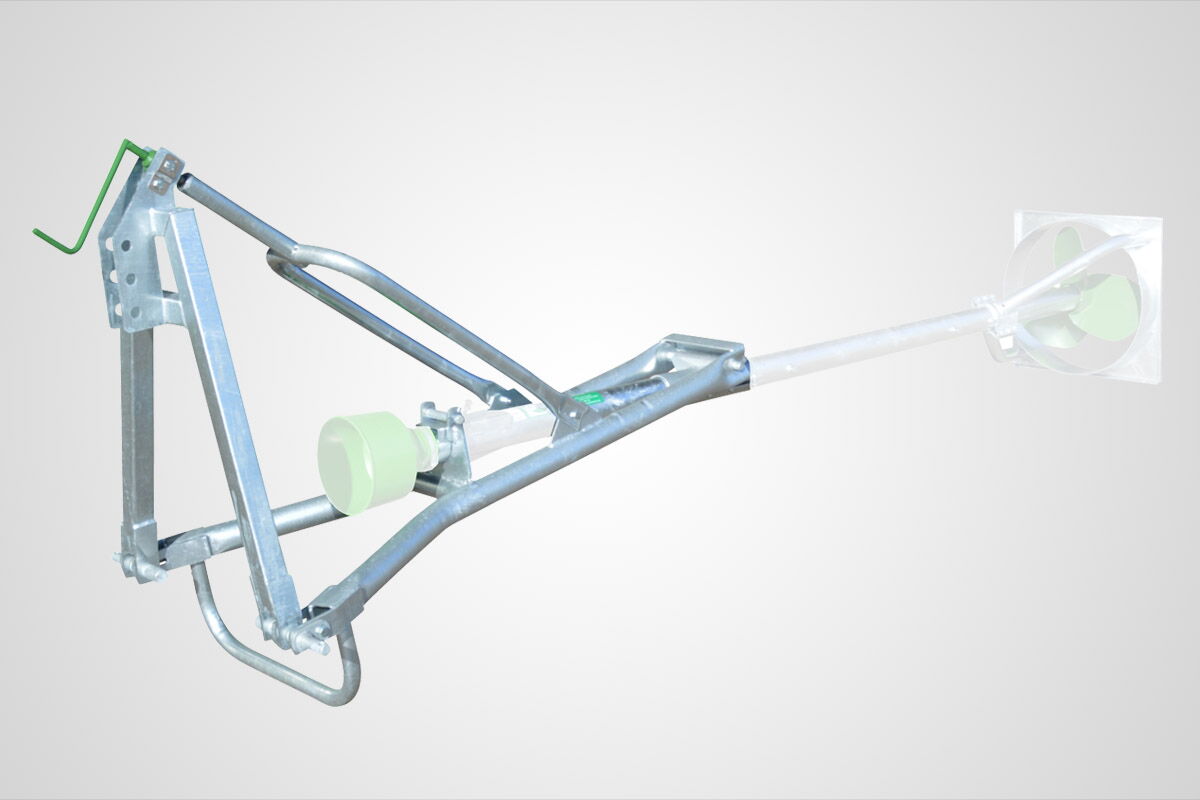

Pivoting three point attachment with adjustment spindle

Fixed three point attachment with adjustment spindle
Fixed three point attachment with adjustment spindle

Lowering the mixer to the different operating positions is achieved through the tractor's hydraulic system or the adjustment spindle. For pit openings of over 600 x 700 mm we recommend the normal pivoting three point attachment with adjustment spindle. The advantage of this adjustment spindle is that the universal joints on the driveshaft can be optimally balanced in this way. In place of the adjustment spindle a hydraulic height adjustment mechanism can also be installed. This makes the system far easier to use. Galvanised tree point mounting with adjustment spindle and pivot. Can only be used with mixers that have an external tube diameter of 102 mm.



Technical data - Pivoting three point attachment with adjustment spindle

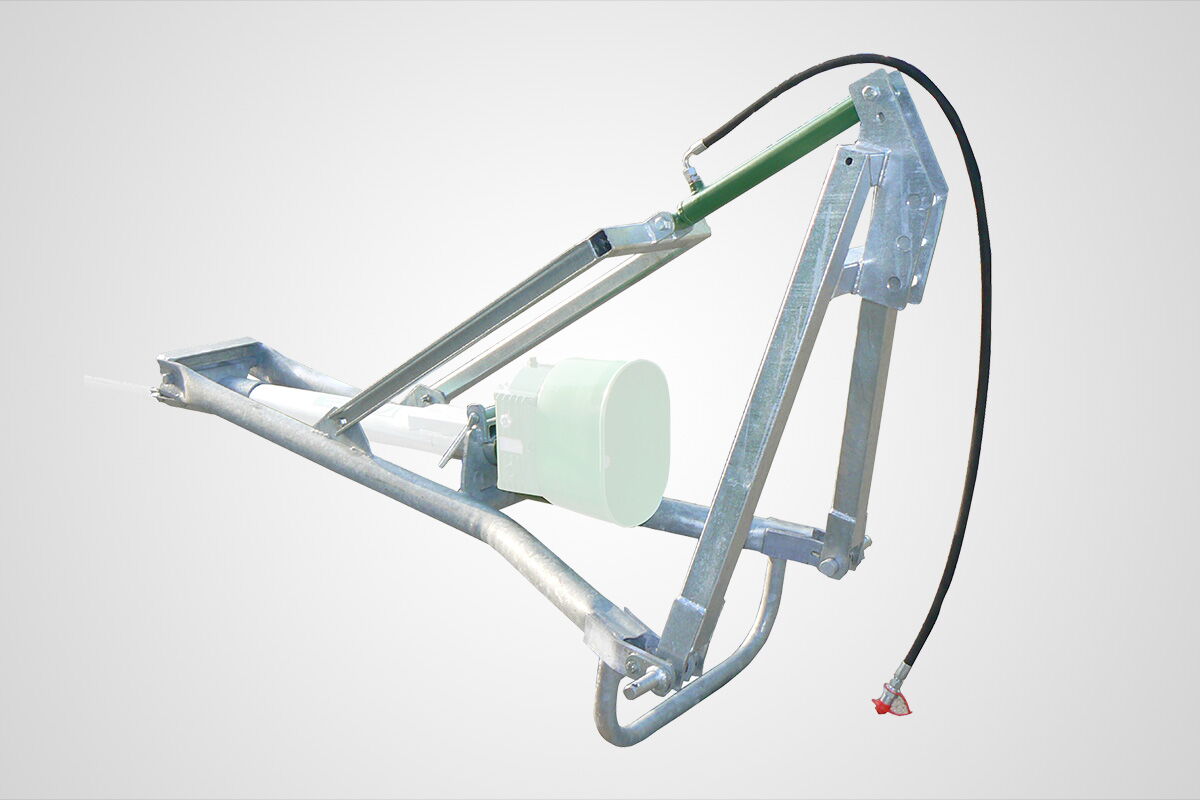

Pivoting three point attachment with special accessory “hydraulic height adjustment”

Pivoting three point attachment with special accessory “hydraulic height adjustment”
Pivoting three point attachment with special accessory “hydraulic height adjustment”

Pivoting three point attachment with special accessory “hydraulic height adjustment”

Technical data - Pivoting three point attachment with special accessory “hydraulic height adjustment”

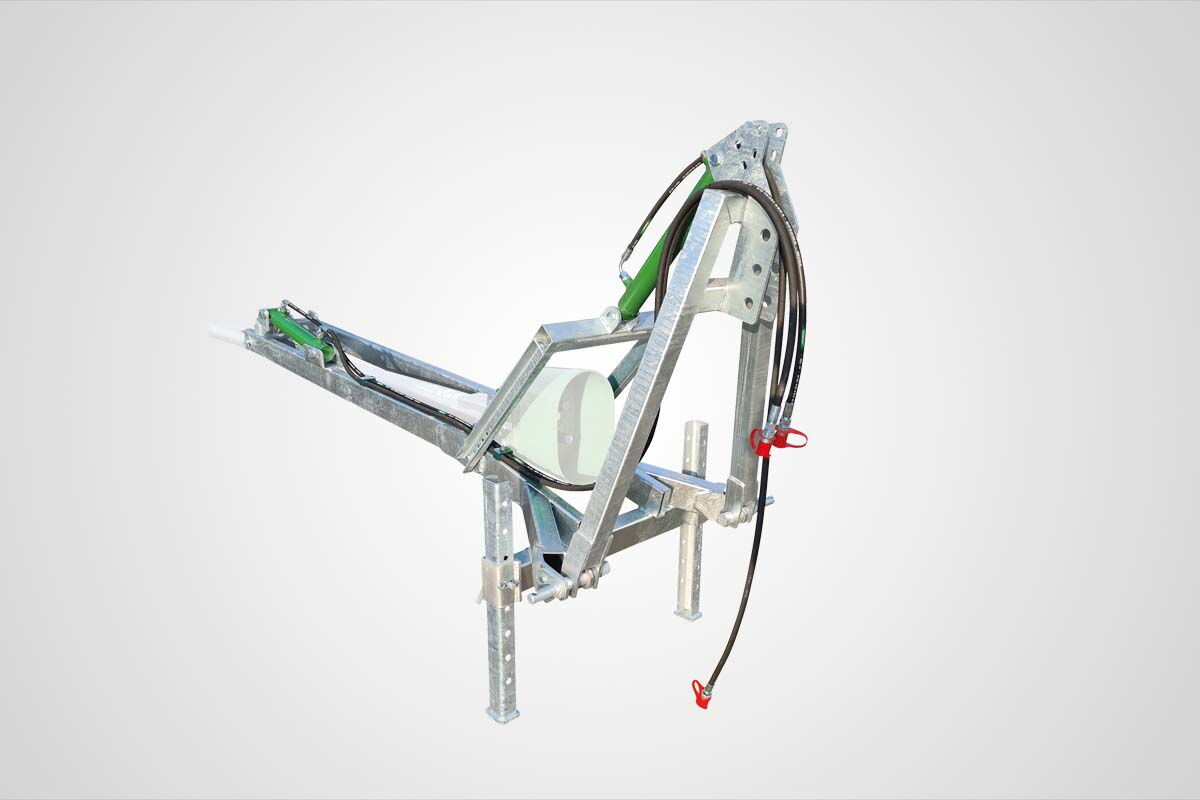

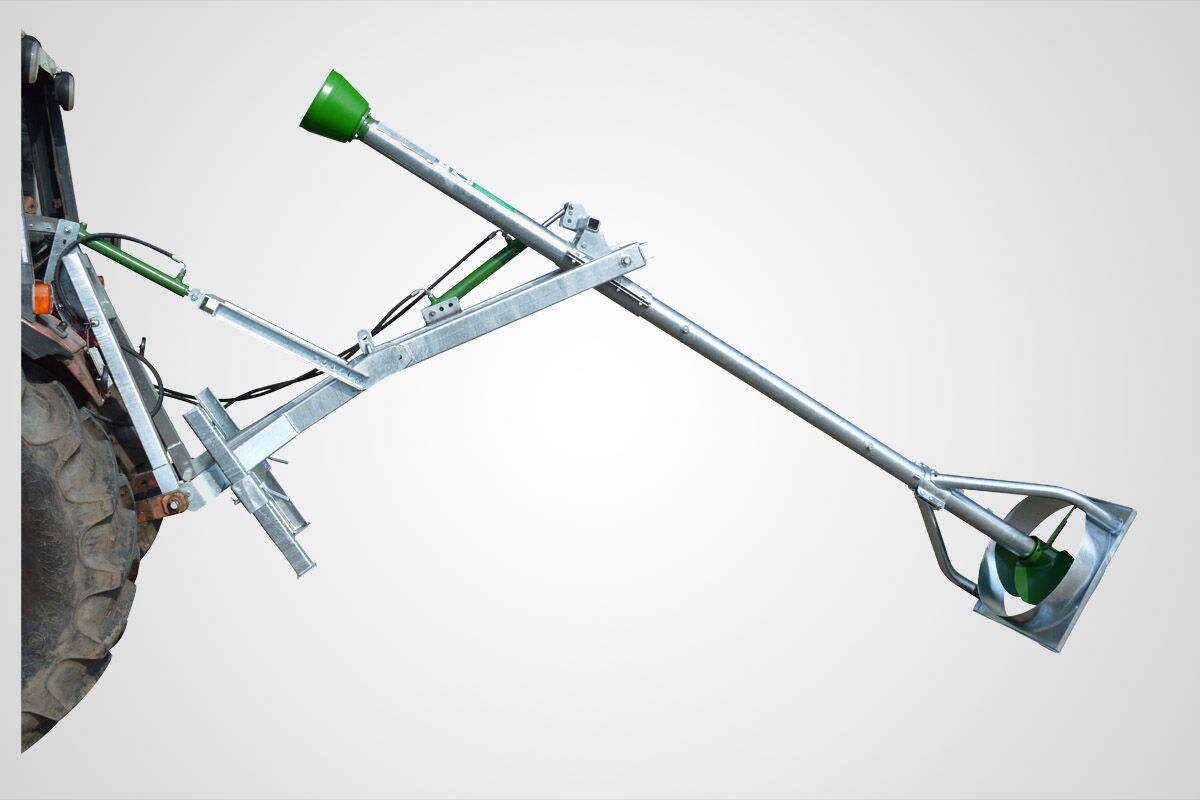

Three point attachment with hydraulic height adjustment and swivelling device

Three point attachment with hydraulic height adjustment and swivelling device
Three point attachment with hydraulic height adjustment and swivelling device

The interaction of both hydraulic cylinders enables precise and controlled swivelling particularly in shafts that are otherwise difficult to access.

If additional throttle valves are installed, the lifting speed can be adjusted, thus allowing optimum control.

Height-adjustable support feet facilitate tractor hitching and unhitching.

Three point attachment with hydraulic height adjustment and swivelling device
Three point attachment with hydraulic height adjustment and swivelling device

The three point attachment is particularly suitable, like the standard pivoting three point attachment, for pit openings greater than 600 x 700 mm and is available in a galvanised design for a external propeller cage tube diameter of Ø 102 mm.

Technical data - Three point attachment with hydraulic height adjustment and swivelling device

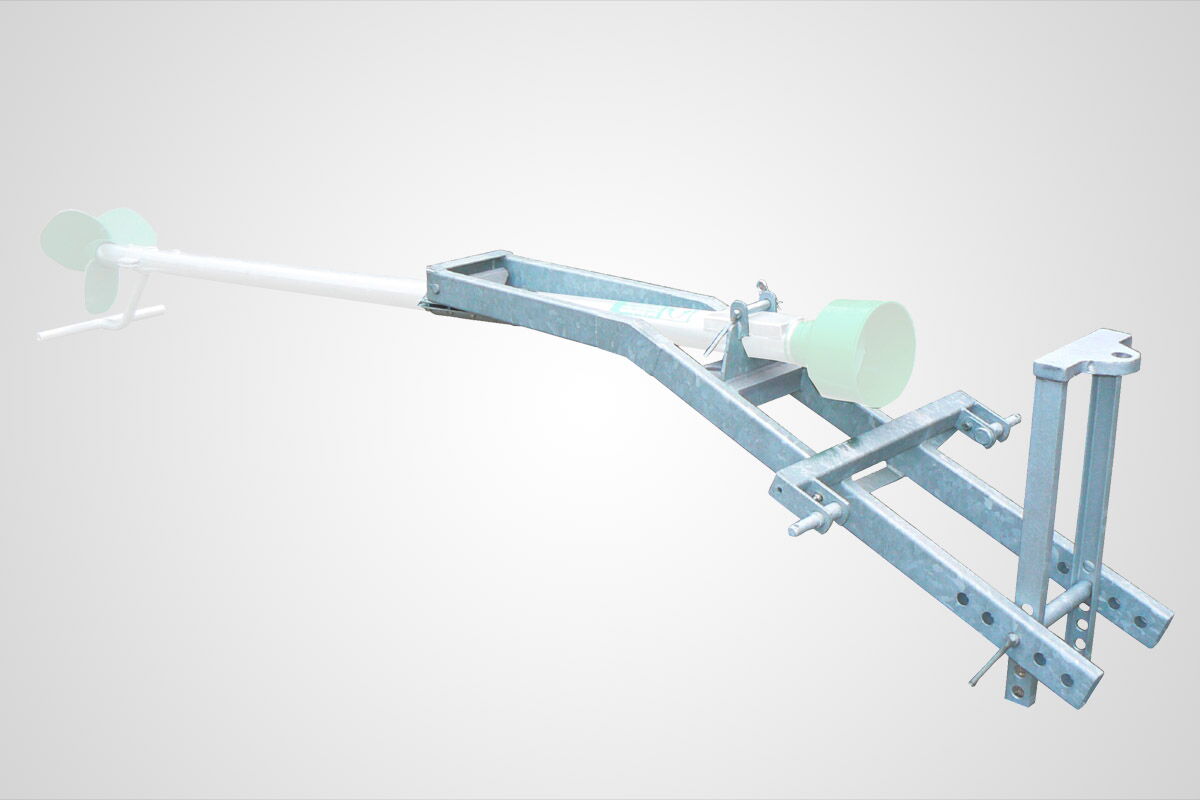

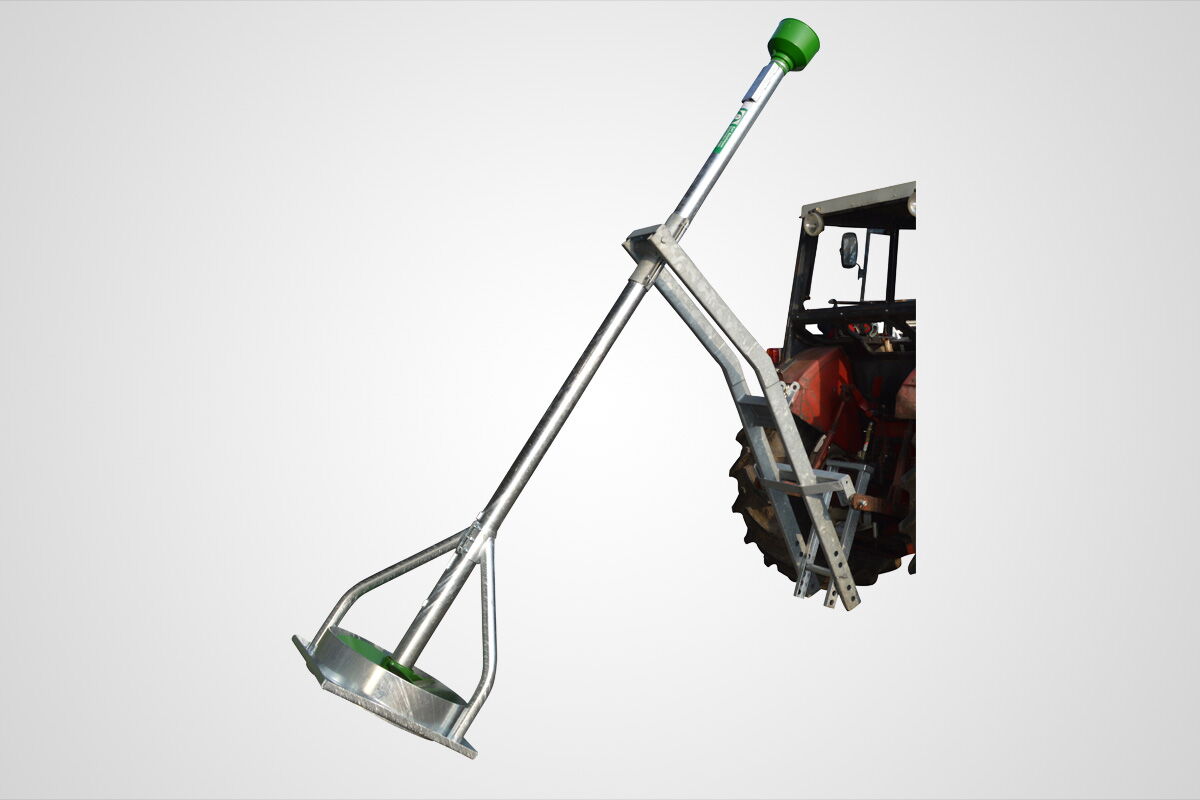

Pivoting three point attachment with lower linkage mounting, kinked

Pivoting three point attachment with lower linkage mounting, kinked
Pivoting three point attachment with lower linkage mounting, kinked

For smaller pit openings (under 600 x 700) we have a three point attachment (also pivoting) in our range.

This is of a kinked design and its height is adjusted using the lower links.

The advantage of this design is that it is easier to use in smaller pit openings.

During the mixing process height adjustment is only possible via the lower links.

Pivoting three point attachment with lower linkage mounting, kinked
Pivoting three point attachment with lower linkage mounting, kinked

The consequence of this could be the over-flexing of the universal joint within the drivetrain.

Hydraulic height adjustment cannot be used here. The specialist dealer must first be consulted before using three point attachments on the corresponding system.

Galvanised three point mounting with pivot assembly, kinked.

Can only be used with mixers that have an external tube diameter of 102 mm.

Technical data - Pivoting three point attachment with lower linkage mounting, kinked

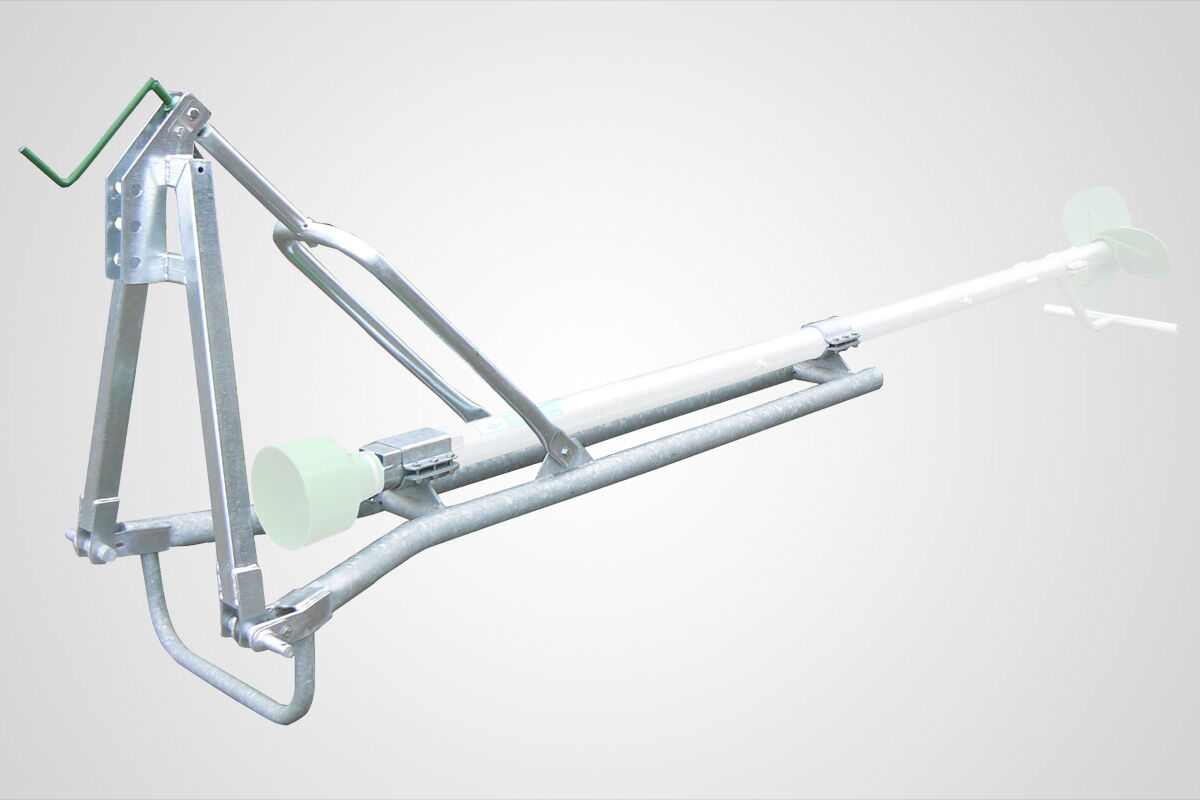

Fixed three point attachment with adjustment spindle

Fixed three point attachment with adjustment spindle
Fixed three point attachment with adjustment spindle

For mixers up to 6200 mm in length. The fixed three point attachment is well suited to open slurry containers. It is fitted as standard with the same adjustment spindle as the pivoting three point attachment. A hydraulic height adjustment mechanism can easily be fitted. Fixed three point attachment with adjustment spindle Galvanised. Can be used with mixers that have an external tube diameter of 102 mm.

Technical data - Fixed three point attachment with adjustment spindle

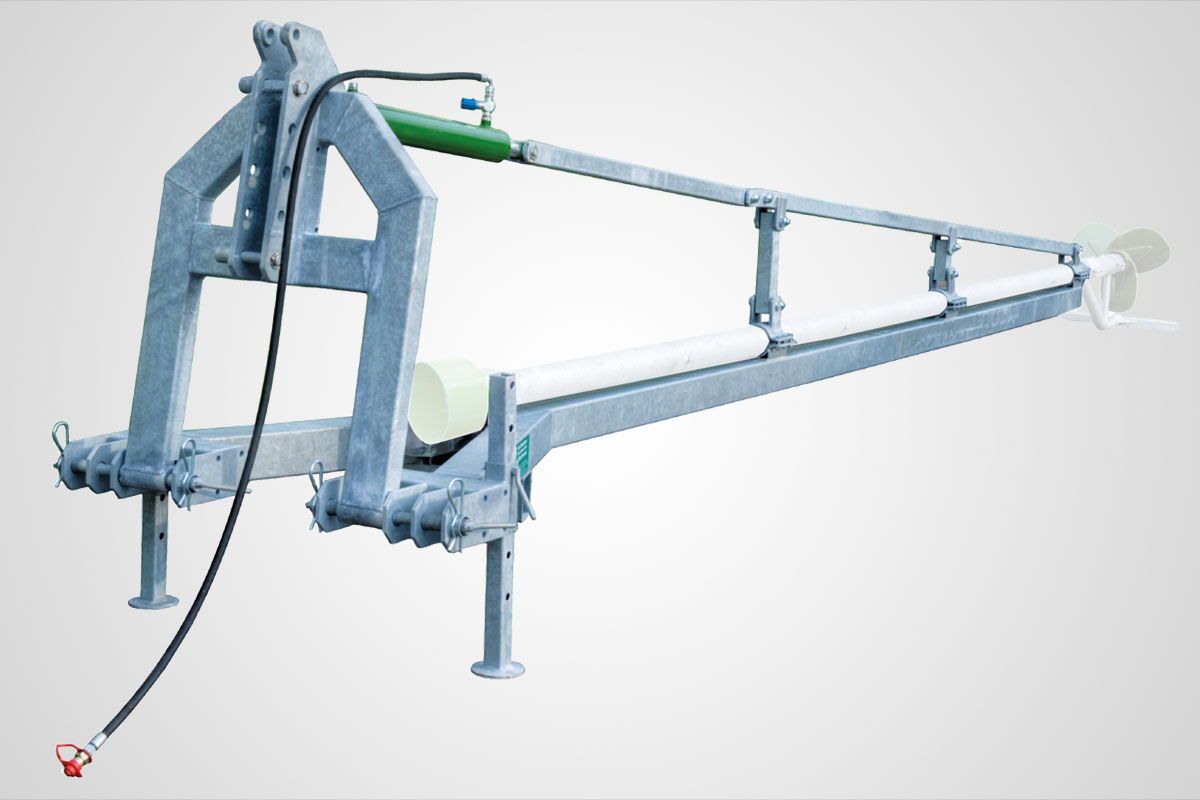

Fixed three point attachment with hydraulic height adjustment for mixers over 6200mm in length

Fixed three point attachment with hydraulic height adjustment for mixers over 6200mm in length
Fixed three point attachment with hydraulic height adjustment for mixers over 6200mm in length

Fixed three point attachment, galvanised. For mixers over 6200 mm in length and with hydraulic height adjustment.

Can be used with stirrer outer tube Ø 102 mm. This model is available for mixers up to 10000 mm in length and is used mainly in open slurry tanks. Hydraulic height adjustment is essential for this design because of its weight. The single-acting hydraulic cylinder is fitted with an articulating joint to ensure that the piston rod is not subjected to axial stresses. The design prevents buckling of the piston rod.

If a mixer with an open mixing propeller is used (type E2-102) we recommend fitting a reinforced propeller skid.

Standard equipment:

  • Hydraulic height adjustment, stroke length 600 mm, with articulating joint in the attachment.
  • Hydraulic hose, 2500 mm long, with quick coupler.
Technical data - Fixed three point attachment with hydraulic height adjustment for mixers over 6200mm in length

Specifications are subject to change without notice.
