Lagoon Mixer Type E-102

We have a mixer that has been specially designed for mixing slurry lagoons - the lagoon mixer.

Advantages

  • Bundled agitation jet
  • Adjustable agitator nozzle
  • Maximum lagoon protection

Additional advantages

  • Installed length up to 10,650 mm
  • For the prevention of floating and sinking layers
  • Made in Germany

Business areas

  • Agricultural sector
  • Biogas sector
  • Industrial use

Suitable for

  • Earth reservoir
  • Lagoon

This machine has multiple safety features to ensure that the lagoon liners cannot be damaged. In addition, the mixer nozzle, which is angled at 30°, offers considerable advantages in comparison to a normal slurry mixer.

Type “E-102” lagoon mixer Overall lengths of 6650 mm to 10650 mm

The lagoon mixer comprises the E-102 slurry mixer fitted with a heavy duty three point attachment and an adjustable mixing nozzle.

This mixer has proven itself in use in long, deep and open slurry pits. While the lagoon mixer has been specially designed and constructed for mixing slurry lagoons, it has also proven to be highly suited for use in open earth slurry pits.

The particularly heavy duty three point mounting with hydraulic height adjustment allows an adjustable mixing nozzle to be attached.

The lagoon mixer can be raised to the required height during the mixing process using the integrated hydraulic cylinder. The 30° mixing nozzle is 1000 mm long and its inclination can be adjusted by approx. 45° forwards using a separate adjusting spindle.

Using this combination, the optimum mixing of the slurry in very deep slurry pits is ensured.

Because the floor of a filled slurry pit cannot be seen, we recommend that car tyres be attached to the mixing nozzles in order to avoid damaging the pit liner. The corresponding drill holes are already in place for this.

For optimum lubrication of the upper seal we recommend the fitting of an oil expansion tank.

Standard version

  • Slurry mixer TYPE E-102 with a mixing propeller diameter of Ø 560, pusher.
  • Three point mounting
    Hydraulic height adjustment, stroke length of the hydraulic cylinder 600 mm
  • 2500 mm hydraulic connector hose with quick connector
    Mixing nozzle Ø 650 angled at 30°, overall nozzle length 1000 mm, with reinforcement ring at the nozzle outlet. The size of the mixing nozzle allows max. one mixer propeller with a Ø of up to 560 mm.
  • Adjustment of the mixing nozzle by approx. 45° via an adjustment spindle
  • PTO connection: 1 3/8” Z6 DIN 9611
  • Overall length of the lagoon mixers from approx. 6650 mm to 10650 mm
  • The whole construction is hot-dip galvanised

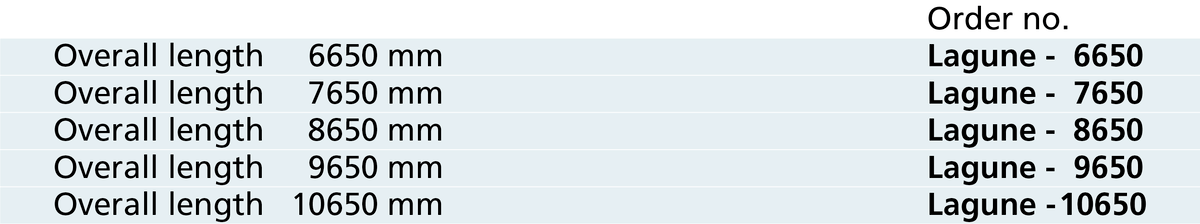

Technical data - Type “E-102” lagoon mixers

Flexible and customised.

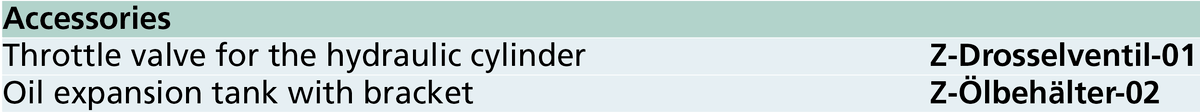

Various equipment variants, attachments and accessories are available for our agitators and systems.

Oil expansion tank

Oil expansion tank

Details: Lagoon Mixer Type E-102
Mixing propellers

Mixing propellers

Details: Lagoon Mixer Type E-102
Constant velocity drive shaft

Constant velocity
drive shaft

Details: Lagoon Mixer Type E-102
Three point attachment extension

Three point attachment extension

Details: Lagoon Mixer Type E-102

Specifications are subject to change without notice.
