Front loading agitator Hydraulicus
Thanks to its slim design, the Hydraulicus is ideal for small openings.
Advantages
- Slim design for small openings
- Installed length up to 6,000 mm
- Made in Germany
Business areas
- Agricultural sector
- Biogas sector
- Industrial use
Suitable for
- Slurry cellar
- Gravity tank
- Earth reservoir

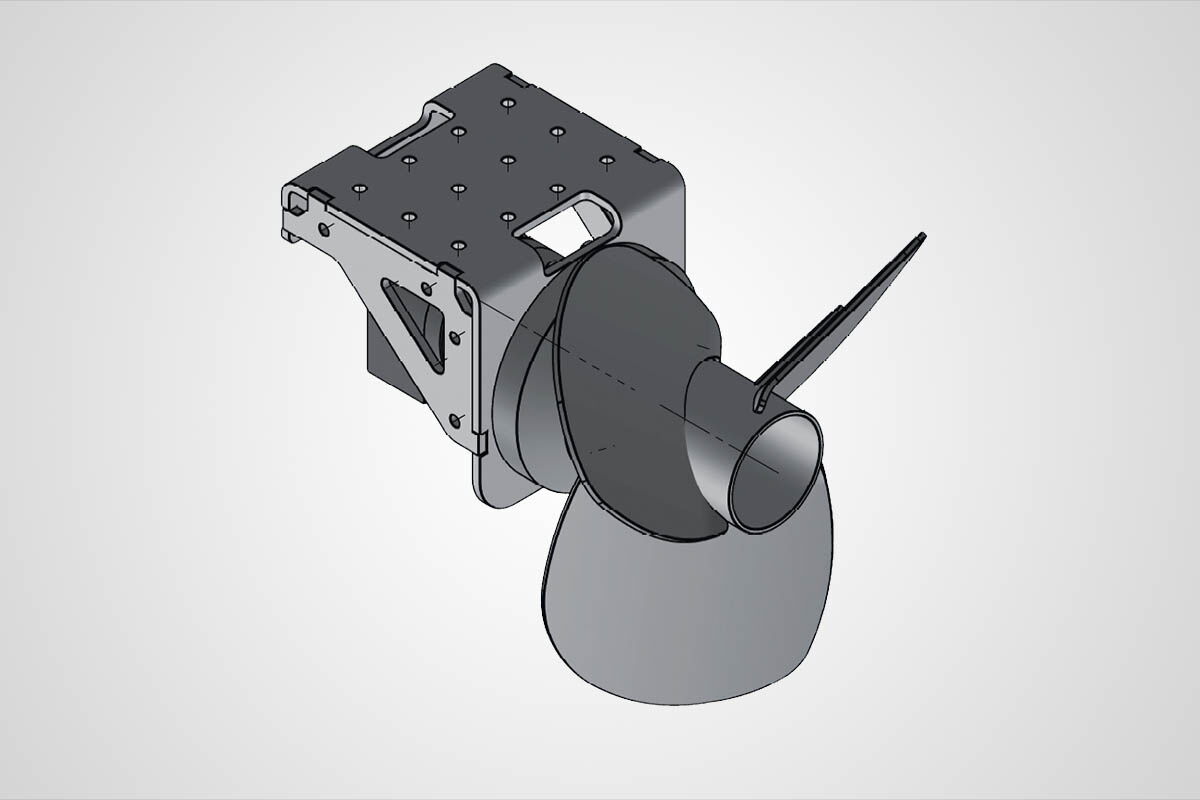

The complete drive technology with orbital motor is directly behind the agitator blade and forms a unit.
The entire head can be tilted by ± 90° using a socket pin, in order to optimally adapt the agitation jet to the operating conditions.
In addition, the head can easily be converted to have a ± 90° side adjustment instead of a tilt adjustment. A pressure relief valve is optionally available for an extra charge.
The mount for the front loader will be made to fit upon consultation.

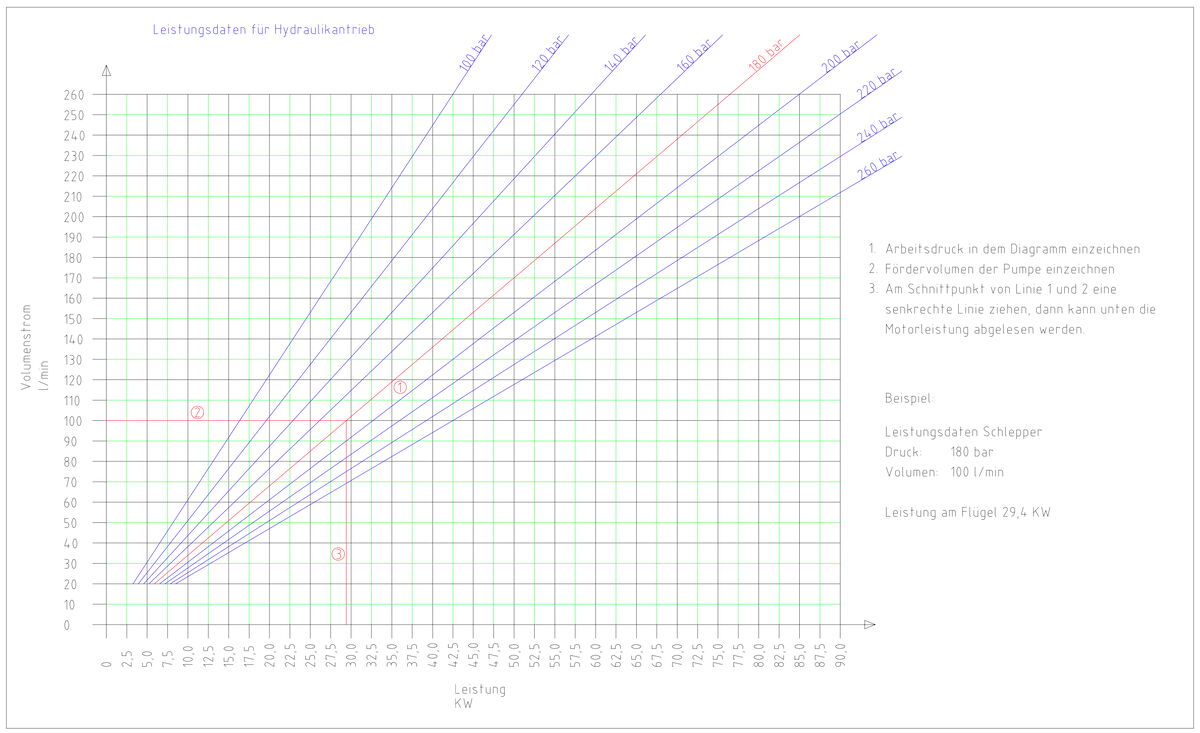

Technical data - Front loading agitator Hydraulicus
Hydraulicus UK
Motor unit with agitator blade and a universal steel bracket (hoses are not included)
Technical data - Hydraulicus UK
Specifications are subject to change without notice.
