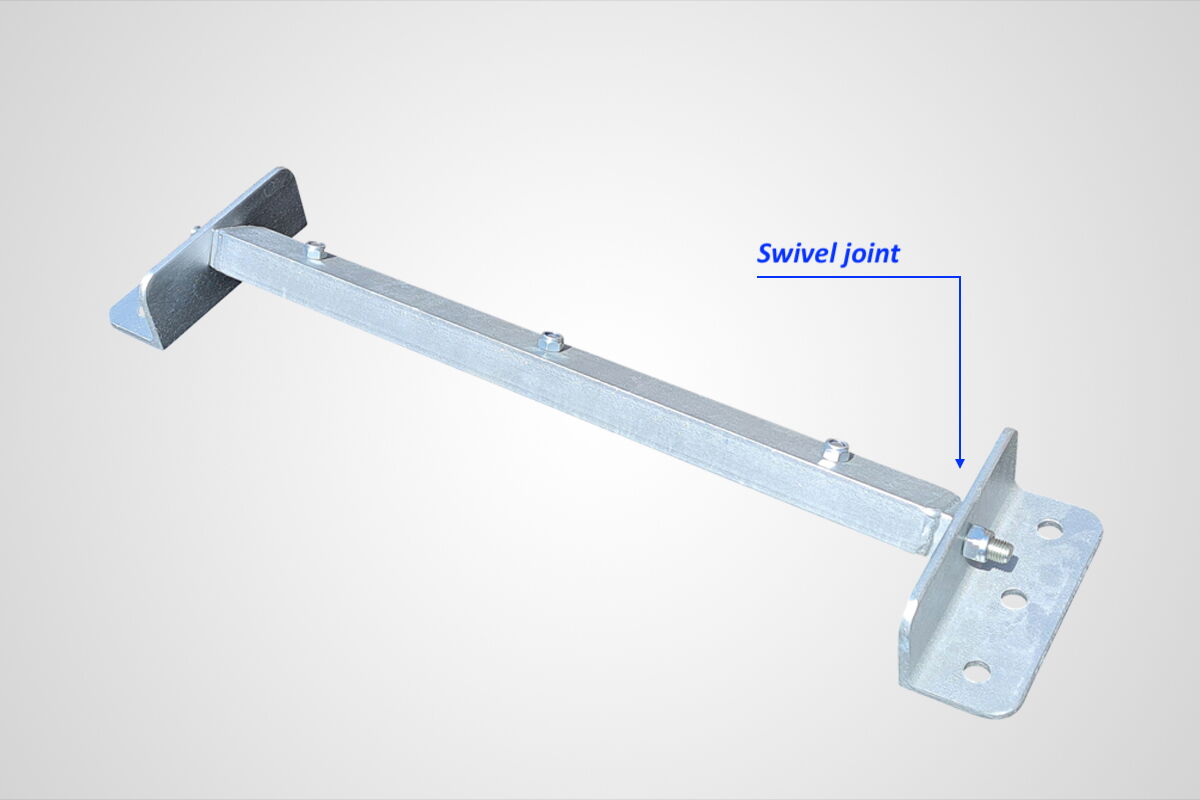

Support bracket Support bracket Bracket for the angled rail in the slurry cellar. Please indicate the width of the agitator basket and the diameter of the pipe in case of subsequent delivery. Standard width: 540-600-625-700 (mm) Version in galvanized. Available for tube Ø 60-; Ø 76- and Ø 102 mm Technical data - Support bracket Universal mixer installation bracket Universal mixer installation bracket Adjustment range 600 - 1200 mm standard model Adjustment range 1000 - 1700 mm enhanced version Angle 0 – 180 degrees. Technical data - Universal mixer installation bracket Standard model: Enhanced version: Lower linkage mounting Lower linkage mounting In place of a bracket for the angled rail or a three point attchment. It is recommended that Hanging clamps are used with this mounting. Only permitted in combination with an agitator cage or a reinforced skid. Version in galvanized. Available for tube Ø 60-; Ø 76- and Ø 102 mm Technical data - Lower linkage mounting Lower linkage mounting, complete: Fixed installation bracket Fixed installation bracket Bracket for fixed installation on the baseplate at the edge of the pit or on the preliminary trough bulkhead. Angle 0 – 180 degrees. Galvanised, fits Ø 102 mm tube Technical data - Fixed installation bracket Galvanised, fits Ø 102 mm tube: Cage bracket Fastening profile for the agitator cage, dimensions 700 x 700, for dowelling on a concrete slab. Technical data - Cage bracket Galvanised version, without ground anchor: Universal mount for speed agitators The bracket is screwed under the V-belt box. The two side stands are attached to a concrete slab. Unique feature: the height and angle of the bracket is adjustable. Technical data - Universal mount for speed agitators Elevated slurry tank mixer mounting for fixed operation Elevated slurry tank mixer mounting for fixed operation This device allows the mixer to be used on a front loader to mix slurry tanks up to 4.5 m in height – even where several elevated slurry tanks are in use. In this mounting the mixer can be pivoted between 0° – 180° and tilted through 60°. Tilt adjustment is achieved via a cable winch. Version in galvanized, suitable for stirrer tube Ø 102 mm Technical data - Elevated slurry tank mixer mounting for fixed operation All slurry mixers with an outside tube diameter Ø 102 can be fitted to this fast change bracket. Mixers with electric motor or with integrated hydraulic motors are suitable for mixing. We recommend the use of a mixer with a pusher propeller. If a mixer with an open mixing propeller is used (type E2-102) we recommend fitting a reinforced propeller skid. Unless otherwise specified, the connection plates are supplied for a Euro mount. Fast change bracket Diggermix – Bolted-on mounting plates and thus can be converted for other mounting systems Fast change bracket Diggermix – Special attachments upon request Fast change bracket Diggermix – Special attachments upon request Fast change bracket Diggermix – Special attachments upon request Fast change bracket Diggermix – Special attachments upon request Fast change bracket Diggermix – Special attachments upon request function init() { var galleryThumbs = new Swiper('.mm-product-details-gallery-thumbs-3056', { spaceBetween: 20, slidesPerView: 3, loop: false, freeMode: false, loopedSlides: 0, //looped slides should be the same watchSlidesVisibility: true, watchSlidesProgress: true, updateOnWindowResize: true, grabCursor: true, breakpoints: { 1000: { slidesPerView: 5, spaceBetween: 20 }, 900: { slidesPerView: 3, spaceBetween: 20 }, 800: { slidesPerView: 4, spaceBetween: 20 }, 600: { slidesPerView: 3, spaceBetween: 20 } } }); var galleryTop = new Swiper('.mm-product-details-gallery-big-3056', { spaceBetween: 0, slidesPerView: 1, loop: false, updateOnWindowResize: true, grabCursor: true, lazyPreloadPrevNext: 1, navigation: { nextEl: '.gallery-swiper-button-next-3056', prevEl: '.gallery-swiper-button-prev-3056', }, thumbs: { swiper: galleryThumbs, }, }); }; document.addEventListener('DOMContentLoaded', init); Technical data - Fast change bracket Diggermix Stationary agitator holder for ground basins and open lagoons Stationary agitator holder for ground basins and open lagoons Ideal for electrically or hydraulically driven agitators up to 12 m in length and outer pipe Ø 102 mm.  A reinforced version for an outer pipe Ø 168 mm and hydraulic tilt adjustment can be supplied on request. The bracket can be swivelled 360° and tilted from 0° – 45°. The inclination is adjusted via a worm gear rack. Technical data - Stationary agitator holder for ground basins and open lagoons
