Mixer tower pivoting series II

Advantages

  • Versatile in use
  • Extensive basic equipment
  • Height adjustment available

Additional advantages

  • For the prevention of floating and sinking layers
  • Made in Germany

Business areas

  • Agricultural sector
  • Biogas sector

Suitable for

  • Gravity tank
  • Pivoting adjustment is carried out via a hydraulic cylinder which moves the ball bearing supported slewing ring to the required position.
  • The overall structure has four manually height-adjustable and two additional hydraulic side supports for safe and easy alignment.
  • Power transmission is carried out via two powerful angular gears which are connected to an interior shaft. (Designed for power take-off shaft speeds up to 1000 rpm.)
  • A central hydraulic valve with radio remote control makes handling even more easy.
  • Hop-dip galvanised design, as far as possible
  • The basic price includes a tower outrigger arm, suitable for a mixer length of 6000 mm. An extended tower outrigger arm up to 10000 mm can be supplied for elevated tanks. The mixer is not included in the basic price.

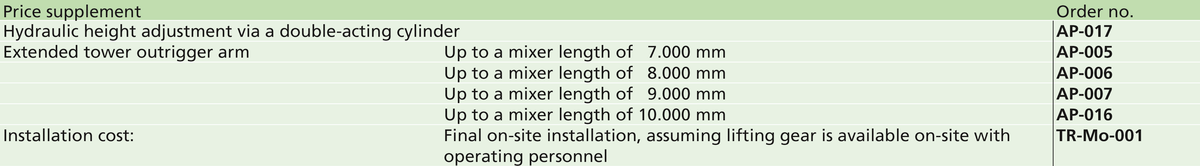

  • Depending on the tower height, hydraulic height adjustment (up to 1.0 meter) is available for a price supplement.
Technical data - Slurry mixer tower, pivoting series II

Galvanised, including hydraulic tilt and rotation adjustment, as well as two hydraulic side supports, four standard adjustable feet and a central hydraulic valve with radio remote control. A double-sided wide-angle drive shaft from the tower to the mixer is required for use. The listed item numbers do not include the matching mixer.

Illustrations: Mixer tower, self-supporting, pivots through 225°

Installation height 3000 mm With central hydraulic valve and radio remote control With hydraulically extendible side feet With hydraulic pivoting adjustment Plus hydraulic height adjustment 1000 mm

Mixer type E2–102–7.000 with pusher propeller Ø 560 With heavy duty propeller skid Plus wide-angle drive shaft G-06 Plus wide-angle drive shaft G-07

Flexible and customised.

Various equipment variants, attachments and accessories are available for our agitators and systems.

Constant velocity drive shaft

Constant velocity
drive shaft

Details: Mixer tower pivoting series II

Specifications are subject to change without notice.
