Lagoon mixer Type E-102 lattice construction

We have a mixer that has been specially designed for mixing slurry lagoons - the lagoon mixer.

Advantages

  • Bundled agitation jet
  • Adjustable agitator nozzle
  • Maximum lagoon protection

Additional advantages

  • Installed length up to 16,650 mm
  • For the prevention of floating and sinking layers
  • Made in Germany

Business areas

  • Agricultural sector
  • Biogas sector
  • Industrial use

Suitable for

  • Earth reservoir
  • Lagoon

This machine has multiple safety features to ensure that the lagoon liners cannot be damaged. In addition, the mixer nozzle, which is angled at 30°, offers considerable advantages in comparison to a normal slurry mixer.

Type “E-102” lagoon mixer – lattice construction Overall lengths from 7650 mm to 16650 mm

A development of the well-proven "Standard" lagoon mixer. It was specially designed for lengths totalling over 9650 mm and is available up to a total length of 16,650 mm.

The machine is supplied largely pre-assembled. For transportation reasons and depending upon the overall length, the mixing nozzle may be supplied separately and must be assembled on-site.

Upon request, the lagoon mixer can be supplied  in knocked-down form for optimum transport. The price will then depend upon the number of  sub-assemblies.

All other details are the same as for the "Standard" lagoon mixer.

Standard version

  • Slurry mixer type E-102 with one mixing propeller Ø 560, pusher
    Three point mounting
  • Hydraulic height adjustment, stroke length of the hydraulic cylinder 600 mm
  • 2500 mm hydraulic connector hose with quick connector
  • Mixing nozzle Ø 650 angled at 30°, overall nozzle length 1000 mm, with reinforcement ring at the nozzle outlet. The size of the mixing nozzle allows max. one mixer propeller with a Ø of up to 560 mm
  • Adjustment of the mixing nozzle by approx. 45° via an adjustment spindle
  • Overall length of the lagoon mixers from approx. 7650 mm to 16650 mm
  • The whole construction is hot-dip galvanised

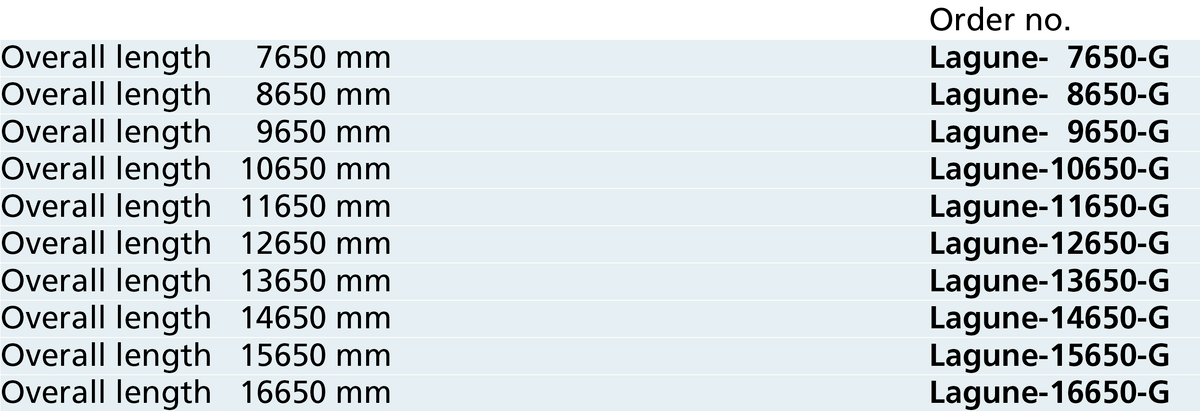

Technical data - Lagoon mixer type “E-102”

Flexible and customised.

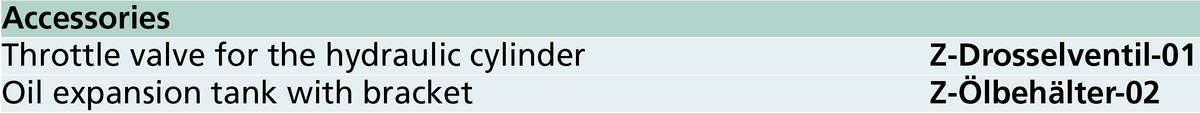

Various equipment variants, attachments and accessories are available for our agitators and systems.

Oil expansion tank

Oil expansion tank

Details: Lagoon mixer Type E-102 lattice construction
Mixing propellers

Mixing propellers

Details: Lagoon mixer Type E-102 lattice construction
Constant velocity drive shaft

Constant velocity
drive shaft

Details: Lagoon mixer Type E-102 lattice construction

Specifications are subject to change without notice.
