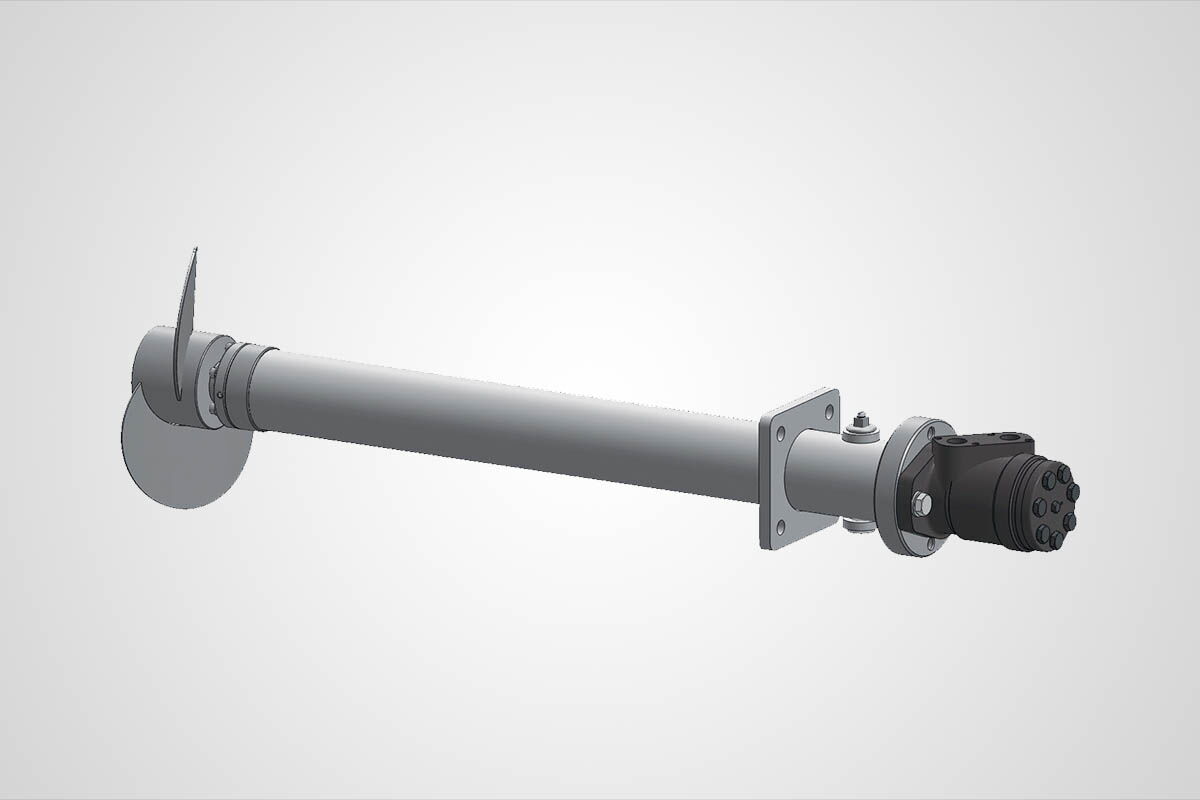

Type S-E2 electric mixer

The type S-E2 electric slurry mixer is a fast-running mixer with a motor that is directly connected with a flange.

Advantages

  • Manoeuvrable and versatile

  • Fully mounted on ball bearing

  • Two directions of rotation

Additional advantages

  • For difficult installation situations
  • With attached reversing switch
  • Made in Germany

Business areas

  • Agricultural sector
  • Biogas sector
  • Industrial use

Suitable for

  • Slurry cellar
  • Gravity tank
  • Earth reservoir

Design:

Mixer tube Ø 76 mm, propeller skid and motor grip are hot-dip galvanised. The motor is fitted with a Star-Delta reversing switch for selecting forward and reverse operation, integrated motor protection circuit breaker with undervoltage trip in the switch box and a CEE device plug. The drive shaft runs on maintenance-free roller bearings. Sealing is achieved with otary shaft lips type seals on bushes that are fitted with stainless steel tension springs in place of a normal one. The unit works without an oil filling and requires very low maintenance. If the mixer is used for fixed operation we recommend the oil-filled version, and if long operating times are envisaged, mechanical seals should be selected. The A-weighted continuous sound pressure level is below 70 dB(A).

The 3250, 3750 and 4250 mm lengths are preferred with a motor rating of 5.5 or 7.5 kW.

While all other lengths are listed and can be supplied, these are considered custom-made products. Custom-made products cannot be exchanged!

Technical data - Electric slurry mixer Type S-E2 (1450 rpm)

Accessories for type S-E2

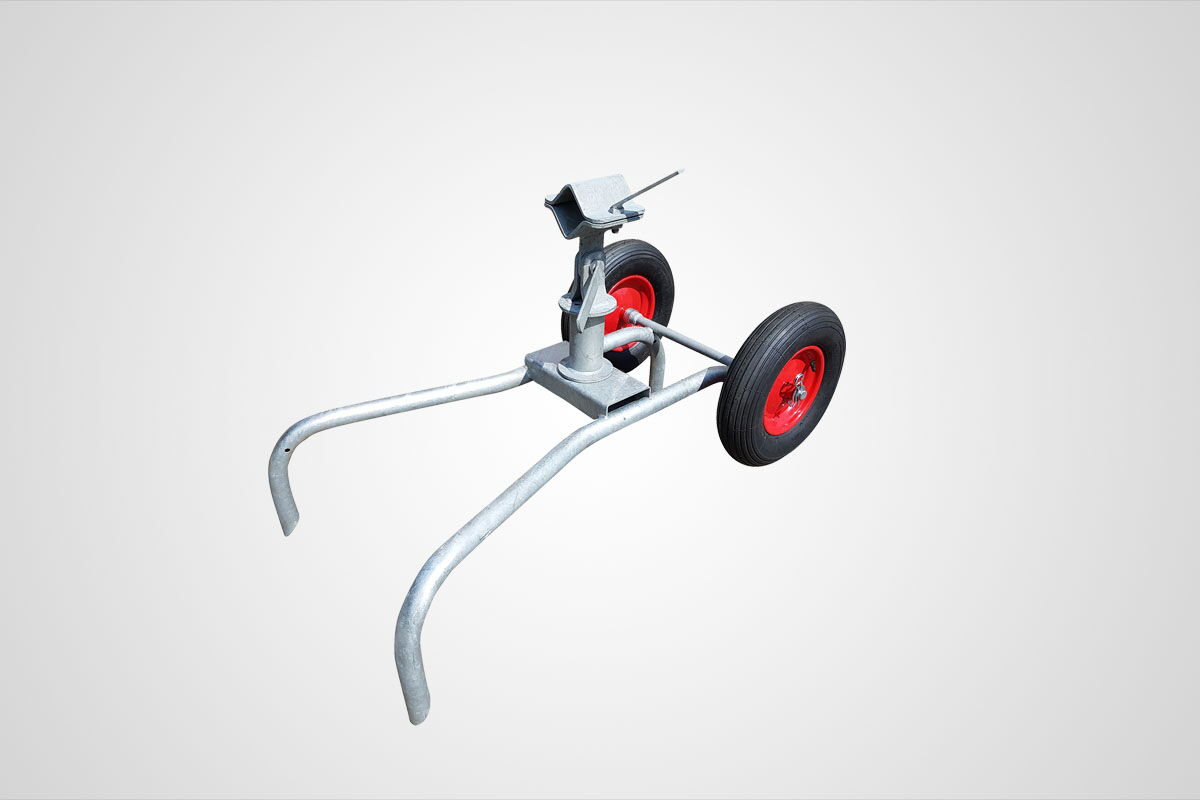

Cart for type S-E2 electric mixer
Cart for type S-E2 electric mixer

Cart for type S-E2 electric mixer

Tubular frame construction of sturdy design, hot-dip galvanised, mixer bracket with painted joint and attachment bracket and wheels with pneumatic tyres that run on roller bearings.

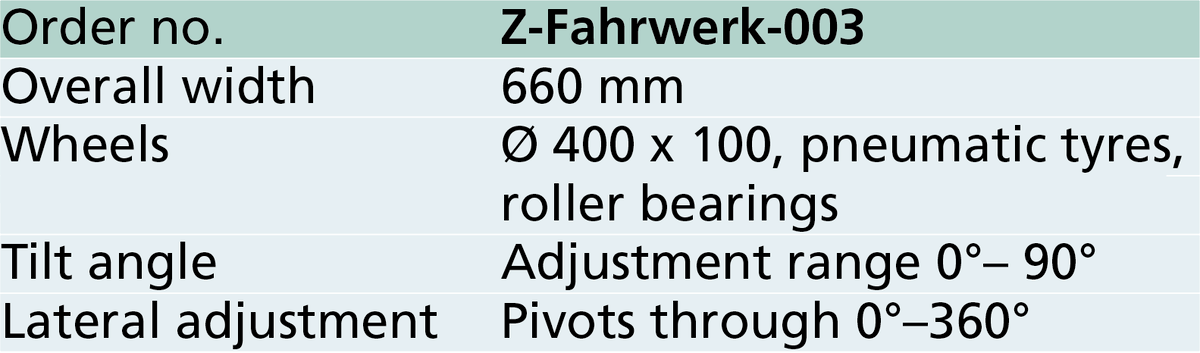

Technical data - Cart for type S-E2 electric mixer

Protective ring S-E2

Protective ring S-E2

suitable for mixer type S-E2. The protective ring provides all-round protection for the mixing propeller.

Technical data - Protective ring S-E2

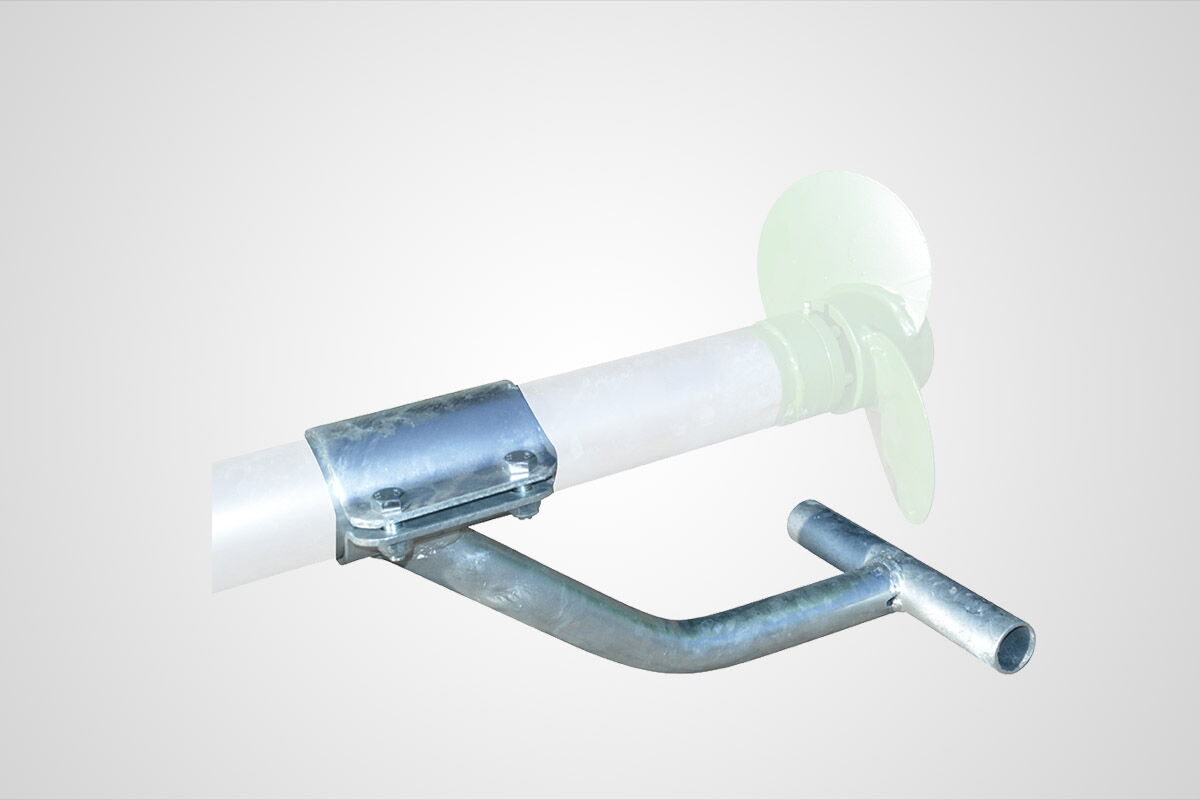

Type S-E2 propeller skid

Type S-E2 propeller skid
Type S-E2 propeller skid

Standard skid suitable for mixer type S-E2.

Technical data - Type S-E2 propeller skid

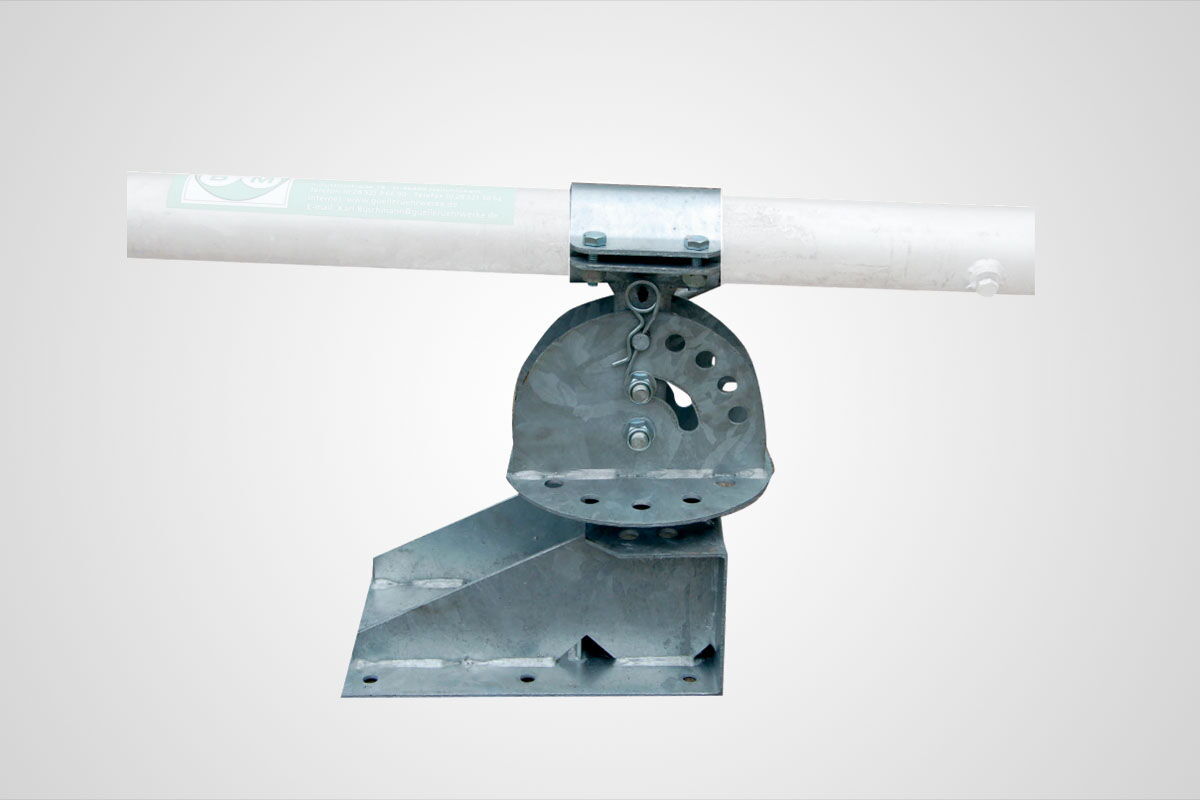

S-E2 bracket, fixed

S-E2 bracket, fixed
S-E2 bracket, fixed

Bracket for the fixed mounting of type S-E2 mixers. In contrast to the normal Type S-E2 bracket, the mixer can be pivoted laterally and its tilt angle adjusted. This bracket is optimally suited for stationary operation.

Technical data - S-E2 bracket, fixed

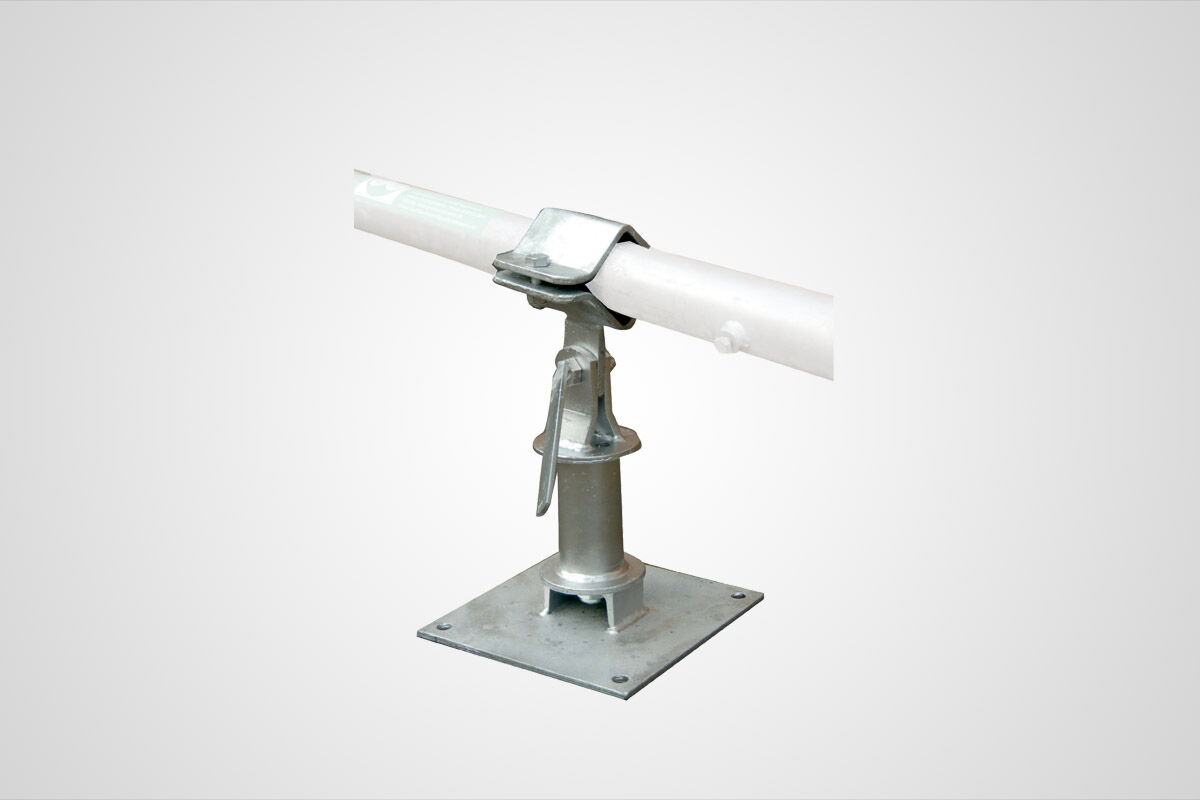

Type S-E2 bracket

Type S-E2 bracket
Type S-E2 bracket

Bracket for the fixed mounting of Type S-E2 mixers. This bracket can be tilted

Technical data - Type S-E2 bracket

Flexible and customised.

Various equipment variants, attachments and accessories are available for our agitators and systems.

Oil expansion tank

Oil expansion tank

Details: Type S-E2 electric mixer
Hanging clamp

Hanging clamp

Details: Type S-E2 electric mixer

Specifications are subject to change without notice.
