Slurry mixer frame extension Longhorn type

Slurry mixer frame extension Longhorn type
Slurry mixer frame extension Longhorn type

Application:

For open elevated slurry tanks with an external height of 3.75 m above the tractor working area. Without a frame extension a slurry tank can be mixed at a height of approx. 0.35 m above the tractor working area.

Depending upon the size of the tractor, a mixer tower is necessary for mixing containers with a lip height of approx. 0.50 m.

An alternative solution here is the slurry mixer frame extension. When using the frame extension, each Buschmann slurry mixer with a three-point hitch (except the lagoon booster and F-168) can be extended to a maximum length of 16 m for use in open pits. For third-party products only after technical clarification.
We recommend the use of a mixer with a pusher propeller. If a mixer with an open mixing propeller is used (type E2-102) we recommend fitting a reinforced propeller skid.

Slurry mixer frame extension Longhorn type
Slurry mixer frame extension Longhorn type

Advantages of the slurry mixer frame extension:

  • Existing KBM slurry mixers with a three point bracket can be used
  • More flexible range of applications
  • Various container heights can easily be accommodated
  • Lower acquisition costs than for a mixer tower

Standard version:

  • Slurry mixer frame extension, hot-dip galvanised version
  • Mixer tube Ø 102 ready for operation, driveshaft runs on maintenance-free roller bearings
  • Driveshaft and bearings are designed for permanent operation.
  • PTO connection: 1 3/8” Z6 DIN 9611
  • Shaft speed of up to 1000 rpm possible
  • Hydraulic cylinder, piston Ø 80, stroke length 600 mm
  • Hydraulic hose with quick coupler of corresponding length
  • hydraulic throttle valve
Slurry mixer frame extension Longhorn type - illustration without the required PTO shafts
Slurry mixer frame extension Longhorn type - illustration without the required PTO shafts

The basic equipment you will need will be a slurry mixer frame extension, two drive shafts and a hydraulic cylinder with connector hose or a tractor with hydraulically adjustable upper links. The hydraulic upper links are necessary to lift the frame over the obstacle. Without this, it can be used as a pure extension. A wide-angle drive shaft on both sides between the frame extension and the mixer is essential. The necessary drive shafts can be supplied as accessory items.

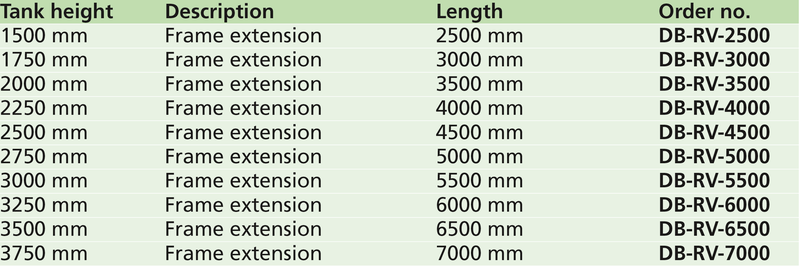

Technical data - Slurry mixer frame extension Longhorn type

The tank heights that can be reached may vary according to the type of tractor used.

Specifications are subject to change without notice.
